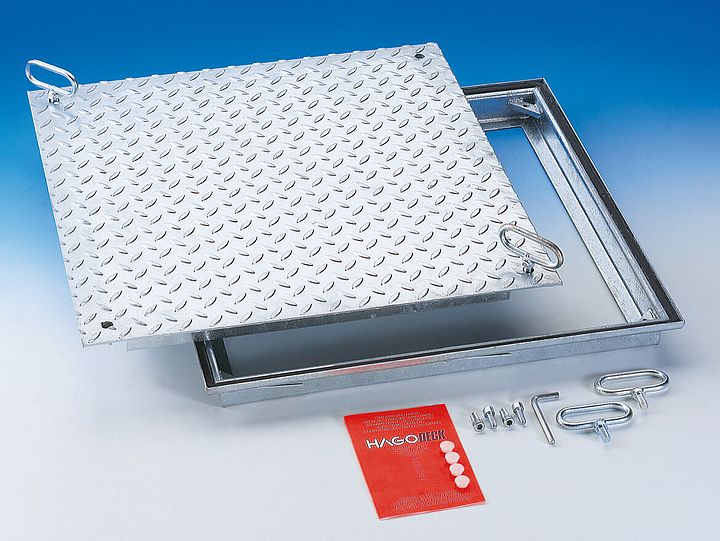

RV steel galvanised Sealed covers
Load capacity:
15 kN test load EN 124.
Material:
Frame made of 2 mm cold formed precision steel profiles. Hot dip galvanised. Durbar-plate cover.
Features:
Sealed cover, flat design. EPDM seal. Opening tool included.
Applications:
For pedestrian use inside buildings and their surroundings, particularly for inspection chambers.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & dimensions
| Type | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight approx | S/O* |
|---|---|---|---|---|
| c x d | A x B | |||
| RV 55 | 50 x 50 | 60,5 x 60,5 | 23 kg | S |
| RV 64 | 60 x 40 | 70,5 x 50,5 | 22 kg | S |
| RV 66 | 60 x 60 | 70,5 x 70,5 | 29 kg | S |
| RV 86 | 80 x 60 | 90,5 x 70,5 | 37 kg | S |
| RV 88 | 80 x 80 | 90,5 x 90,5 | 45 kg | S |
| RV106 | 100 x 60 | 110,5x 70,5 | 44 kg | S |
| RV108 | 100 x 80 | 110,5x 90,5 | 55 kg | O |
| RV110 | 100 x 100 | 110,5x110,5 | 66 kg | S |
Installation height ≈ 6 cm
Special sizes possible
*S = available from stock
*O = to order
Section drawing
- 1 / Frame
- 2 / Durbar-plate cover
- 3 / Seal
- 4 / Allen screw
- 5 / Anchor
- 6 / Socket
- 7 / Plastic cap
Specification clause
HAGODECK Type RV (galvanised steel)
Durbar-plate access cover including opening tool, Type HAGODECK RV, clear opening ....... x ....... cm. Hot-dip galvanised steel, sealed, 15 kN (EN 124) . Installation shall be according to the manufacturer’s instructions.
