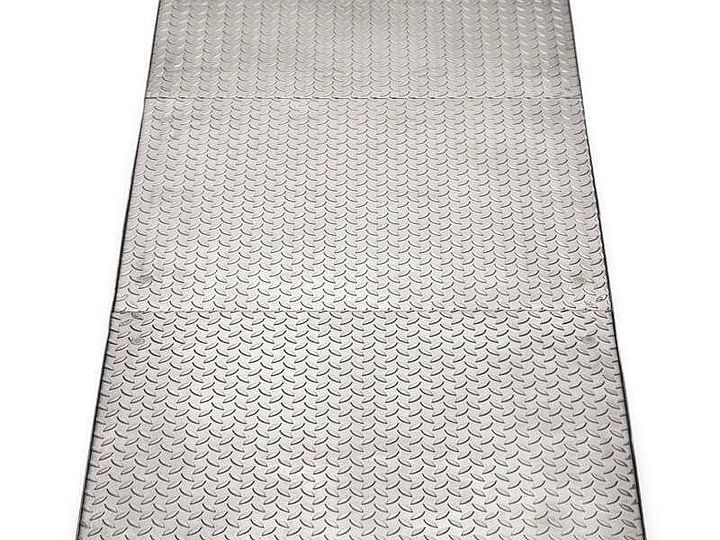

RV-RA multi steel / RVE-RA multi stainless steel multi-part cover largely sealed
Load capacity:
15 kN test load EN 124.
Material:
Frame, plate and cross-beam made of steel galvanized steel or stainless steel grade SS 304 (on request grade SS 316 also available). Reinforcement made of galvanized steel or stainless steel. Good chemical resistant seal.
Features:

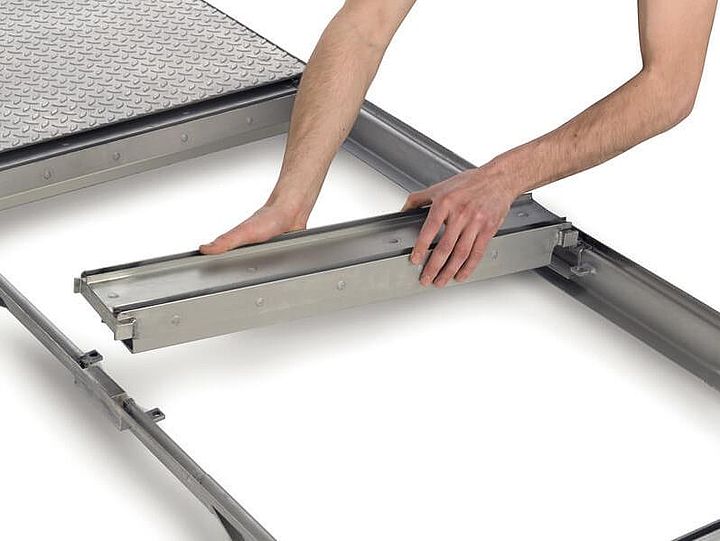

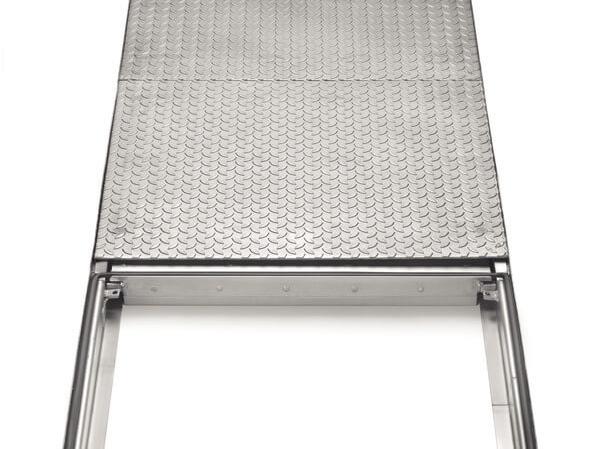

RV(E)-RA in largely sealed design: The frames are connected with cross-beams in the longitudinal direction. For larger covers (from a length of approx. 3 m) the HAGO multi access cover is delivered disassembled and again assembled on site. Not guaranteed to be completely watertight.

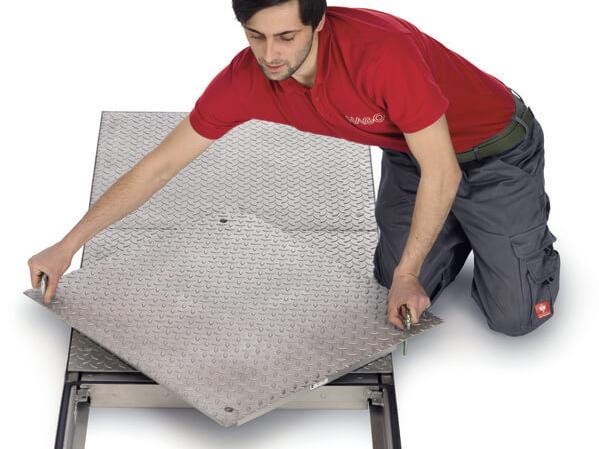

The Lift-Off opening system:
Every HAGODECK Type RV(E)-RA cover comes with a set of lifting keys and precise installation instructions.
Applications:
RV(E)-RA multipart access cover is the ideal cover for supply and disposal channels.
INSTALLATION:
Installation must be carried out according to our instructions.
Section drawing
- 1 / Frame
- 2 / Durbar-plate cover
- 3 / Seal
- 4 / Allen screw
- 5 / Plastic cap
- 6 / Socket
- 7 / Anchor
- 8 / Removable cross beam
Specification clause
HAGODECK Type RV-RA (galvanised steel)
HAGODECK Type RVE-RA (stainless steel)
Access cover with chequerplate with Golden Key Lift Off opening tool,
Type HAGODECK RV-RA/RVE-RA, clear opening ....... x ....... cm.
Multiple covers with removable cross-beam (without tools);
RV-RA: galvanised steel, RVE-RA: Grade 304 stainless steel, largely sealed,
15 kN test load (EN 124).
Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.de
