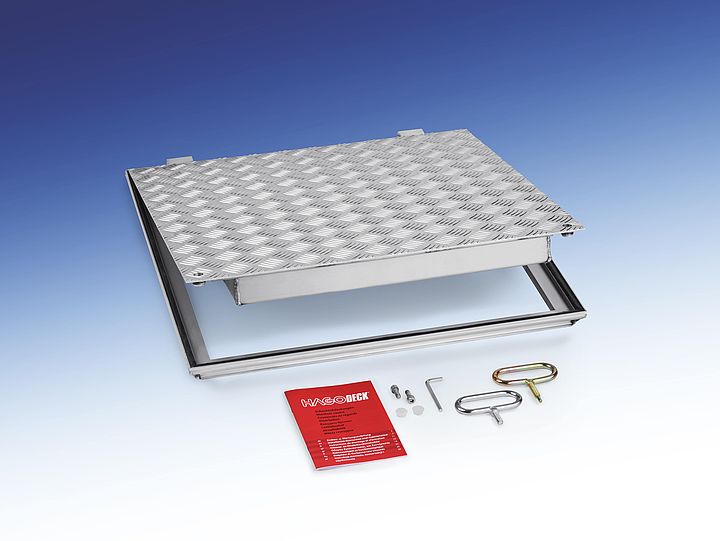

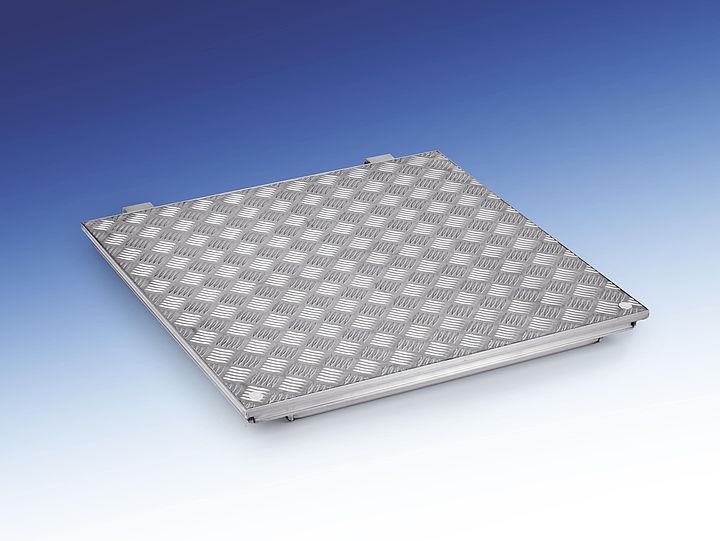

CRVA Alu with hinge, sealed
Load capacity:
15 kN test load EN 124
Material:
Frame made of aluminium extruded sections. Cover made of 3/5 mm aluminum chequerplate. Aluminium reinforcement to the underside. Stainless steel screw and EPDM seal.
Features:

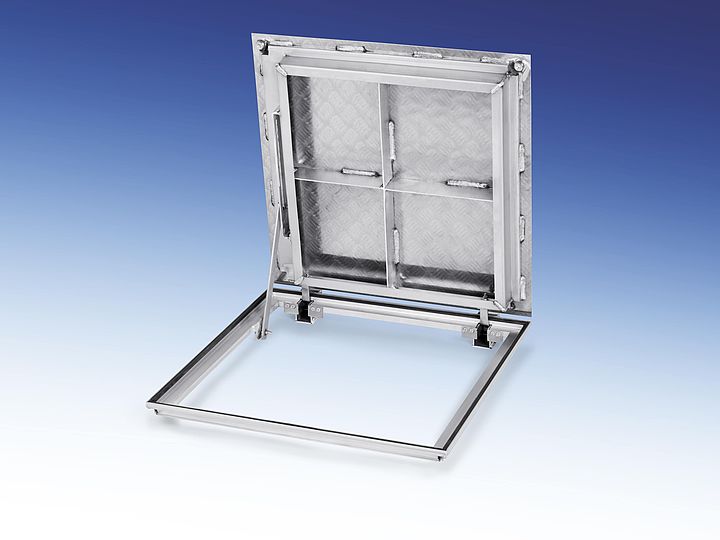

Comfort cover and completely rust-proof. A special seal with good chemical resistance ensures an odor-proof and largely watertight (complete water tightness not guaranteed) solution. Opening tools included. Thanks to the hinge and the low weight of the aluminium plate, the cover can be easily handled by one person without any special efforts. A safety device is fitted, locking the cover in the raised position.
Applications:
For covers which are opened more frequently and have to be easy to handle. Particularly for inspection and revision covers where corrosion resistance and low weight are a substantial advantage.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
TYPES & DIMENSIONS
| Type | Clear dimensions of shaft (approx. cm) | Outside dimensions (approx. cm) | Weight approx. | S/O* |
| c x d | A x B | |||
| CRVA 66 | 60 x 60 | 68,5 x 71,1 | 10 kg | S |
| CRVA 86 | 80 x 60 | 88,5 x 71,1 | 12 kg | O |
| CRVA 88 | 80 x 80 | 88,5 x 91,1 | 15 kg | S |
| CRVA 106 | 100 x 60 | 108,5 x 71,1 | 14 kg | O |
| CRVA 108 | 100 x 80 | 108,5 x 91,1 | 17 kg | O |
| CRVA 110 | 100 x 100 | 108,5 x 111,1 | 21 kg | O |
Installation height ≈ 7 cm
Special sizes possible
*S = available from stock
*O = to order

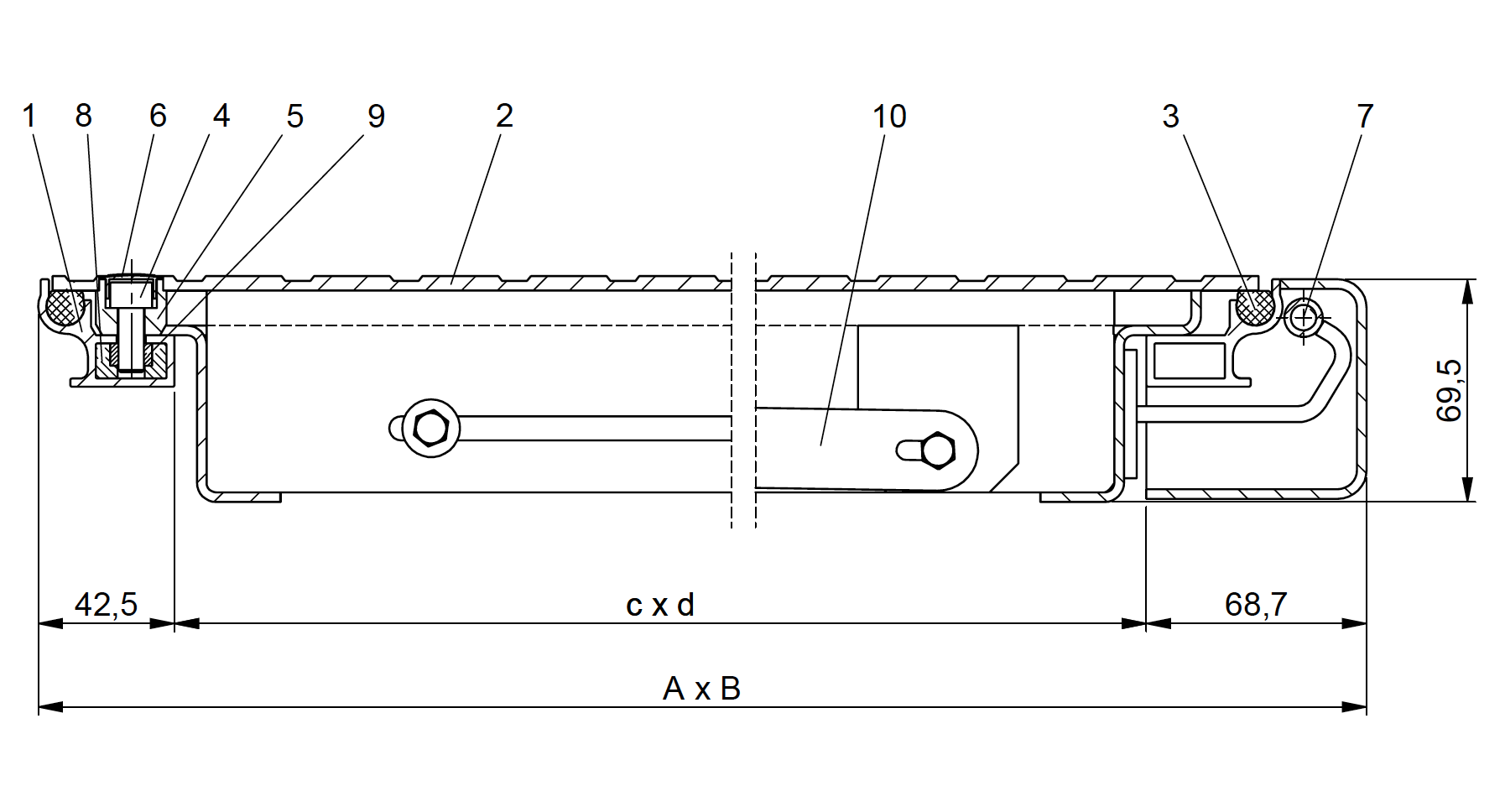

SECTION DRAWING
- 1 / Frame
- 2 / Plate cover
- 3 / Seal
- 4 / Allen screw (stainless steel)
- 5 / Socket
- 6 / Plastic cap
- 7 / Hinge
- 8 / Injection-moulded part (plastic)
- 9 / Square nut (stainless steel)
- 10 / Safety device
SPECIFICATION CLAUSE
HAGODECK Type CRVA (aluminium)
Access cover with chequerplate with Golden Key Lift Off opening tool, with flush-to-floor hinge and safety hold open arm
Type HAGODECK CRVA, clear opening ....... x ....... cm. Aluminium, sealed, stainless steel screws. 15 kN (EN 124). Installation shall be according to the manufacturer’s instructions. Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
