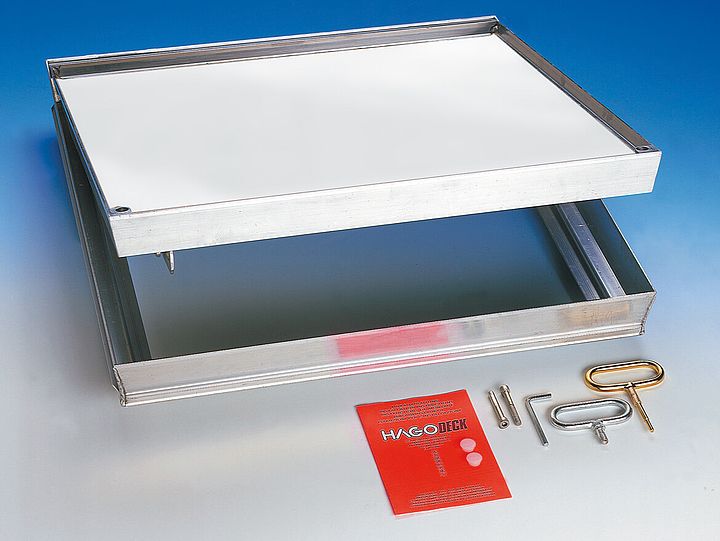

CCA composite comfort Alu with hinge, sealed

Load capacity:

Class A (15kN test load) EN 124

Materials:

Frame in extruded aluminium. Cover in extruded aluminium bonded to a composite aluminium honeycomb panel (with a white coating). Stainless steel screw connections. EPDM seal


Features:

modern lightweight-construction access cover. Major weight-savings compared to concrete-filled access covers. The cover is lifted by the hinge, significantly reducing the effort required. A safety device is fitted, locking the cover in the raised position. As the cover is not filled with concrete, installation is quicker and simpler. There is a recess of 24mm for laying slabs, tiles, parquet etc. In the case of thin tiles, the difference in height can be compensated for by using a suitable tile adhesive (MAPEI Keralastic) and waterproof building board. Sealed design with a very high-quality finish. Very attractive surface, particularly the visible edges. Inconspicuous corner joints make it easy to connect tiles, slabs etc.

Opening with the Lift-Off System with the help of the hinge:

Every HAGODECK Type CCA composite comfort aluminium comes with a set of lifting keys and detailed installation instructions. The HAGO advantage: Jammed covers are released by simply turning the Golden Key.

Recommended applications:

As a cover inside buildings which can be opened by one person.


Installation:

Installation should be carried out according to our installation instructions. In the case of water tight covers, care must be taken to seal the outer frame into the surrounding floor. Attach slabs or tiles fully (over the whole surface) with a suitable tile adhesive (MAPEI Keralastic). In the case of thin tiles or slabs, use waterproof building board to compensate for the difference in height.
