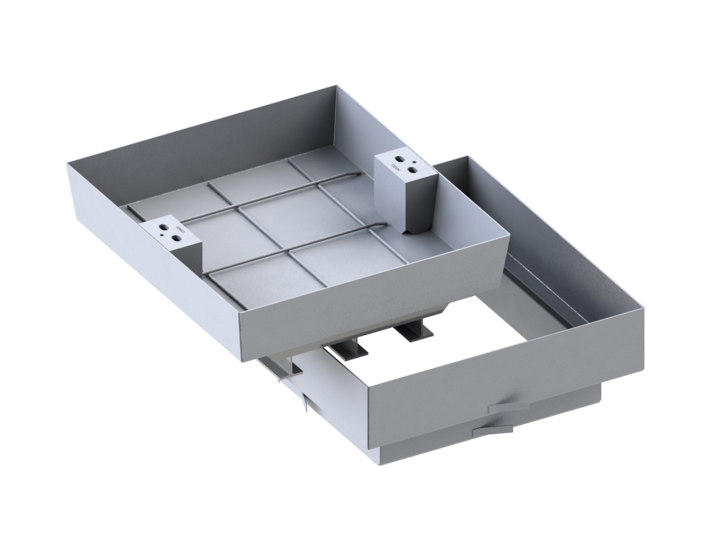

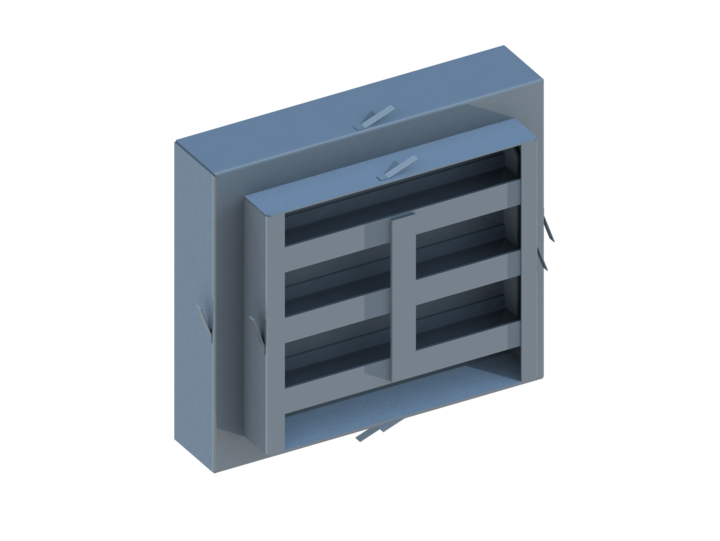

BVXHS 400 steel galv. / BVEXHS 400 stainless steel extra deep recess cover – reinforced design
Load capacity:
400 kN test load EN 124 at min. 5 cm concrete grade C35/45 (EN 206)
Material:
Frame and cover made of
BVXHS 400:
Frame and cover made of sheet steel. Hot-dip galvanized. Good chemical resistant special gasket.
BVEXHS 400:
Frame and cover made of stainless steel grade 304 or on request grade 316. After welding full bath pickling. Good chemical resistant special sealing
Features:
Extra deep recess design. Ideal access cover for truck accessible areas in the building forecourt. In the 150 mm deep recess cover paving stones up to 100 mm in height can be fit. HAGODECK types BVXHS 250 and BVEXHS
250 convince by high load capacity and stable construction. Thanks to EPDM seal the cover is odor-proof and largely watertight.
Lifting plates:
The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery) and a thread for the HAGOlifter (lifting device).
Applications:
As truck accessible access cover in warehouses and building forecourt areas. For paving stones up to 100 mm high, concrete blocks etc.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & dimensions
| Type | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight empty approx. | S/O* |
|---|---|---|---|---|
| Galvanised steel | c x d | A x B | ||
| BVXHS 400 66 | 60 x 60 | 76 x 84 | 100 kg | O |
| BVXHS 400 88 | 80 x 80 | 96 x 104 | 151 kg | O |
| BVXHS 400 110 | 100 x 100 | 116 x 124 | 178 kg | O |
| Stainless steel | ||||
| BVEXHS 400 66 | 60 x 60 | 76 x 84 | 100 kg | O |
| BVEXHS 400 88 | 80 x 80 | 96 x 104 | 151 kg | O |
| BVEXHS 400 110 | 100 x 100 | 116 x 124 | 178 kg | O |
Special sizes possible
Special cover depth possible
*S = available from stock
*O = to order
section drawing
- 1 / Frame
- 2 / Cover
- 3 / Seal
- 4 / Reinforcement
- 5 / Anchor
- 6 / Lifting plate
- 7 / reinforcement frame
- 8 / reinforcement
Specification clause
HAGODECK Type BVXHS 400 (galvanised steel)
Access cover, type HAGODECK BVXHS 400, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish, extra deep pan with 15 cm deep recess, hot-dip galvanised steel, sealed, 400 kN (EN 124). The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery) and a thread for the HAGOlifter (lifting device).
Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
HAGODECK Type BVEXHS 400 (stainless steel)
Access cover, type HAGODECK BVEXHS 400, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish, extra deep pan with 15 cm deep recess, stainless steel, passivated, sealed, 400 kN (EN 124). The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery) and a thread for the HAGOlifter (lifting device).
Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
