BVXHS 250 steel / BVEXHS 250 stainless steel Verstärkte Ausführung mit extra hoher Wanne – Geruchsdicht und weitgehend wasserdicht
Load capacity:
250 kN test load EN 124 at min. 5 cm concrete grade C35/45 (EN 206)
MAterial:
Frame and cover made of
BVXHS 250:
Frame and cover made of sheet steel. Hot-dip galvanized. Good chemical resistant special gasket.
BVEXHS 250:
Frame and cover made of stainless steel grade 304 or on request grade 316. After welding full bath pickling. Good chemical resistant special sealing
Features:

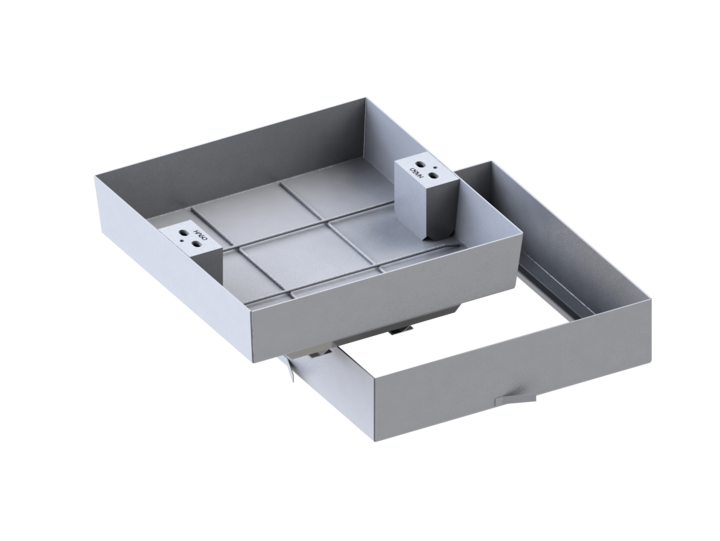

Extra deep recess design. Ideal access cover for truck accessible areas in the building forecourt. In the 150 mm deep recess cover paving stones up to 100 mm in height can be fit. HAGODECK types BVXHS 250 and BVEXHS 250 convince by high load capacity and stable construction. Thanks to EPDM seal the cover is odor-proof and largely watertight.
Lifting Plates:
The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery) and a thread for the HAGOlifter (lifting device).
ApplicationS:
As truck accessible access cover in warehouses and building forecourt areas. For paving stones up to 100 mm high, concrete blocks etc.
InStallation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & Dimensions
| Type | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight empty approx. | S/O* |
|---|---|---|---|---|
| Galvanised steel | c x d | A x B | ||
| BVXHS 250 66 | 60 x 60 | 75,2 x 75,2 | 72 kg | O |
| BVXHS 250 88 | 80 x 80 | 95,2 x 95,2 | 101 kg | O |
| BVXHS 250 110 | 100 x 100 | 115,2 x 115,2 | 140 kg | O |
| Stainless steel | ||||
| BVEXHS 250 66 | 60 x 60 | 75,2 x 75,2 | 72 kg | O |
| BVEXHS 250 88 | 80 x 80 | 95,2 x 95,2 | 101 kg | O |
| BVEXHS 250 110 | 100 x 100 | 115,2 x 115,2 | 140 kg | O |
Special sizes possible
Special cover depth possible
*S = available from stock
*O = to order
Section drawing
- 1 / Frame
- 2 / Cover
- 3 / Seal
- 4 / Reinforcement
- 5 / Anchor
- 6 / Lifting plate
- 7 / Reinforcement
Specification clause
HAGODECK Type BVXHS 250 (galvanised steel)
Access cover, type HAGODECK BVXHS 250, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish, extra deep pan with 15 cm deep recess, hot-dip galvanised steel, sealed, 250 kN (EN 124).
The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery) and a thread for the HAGOlifter (lifting device).
Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
HAGODECK Type BVEXHS 250 (stainless steel)
Access cover, type HAGODECK BVEXHS 250, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish, extra deep pan with 15 cm deep recess, stainless steel, passivated, sealed, 250 kN (EN 124).
The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery) and a thread for the HAGOlifter (lifting device).
Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
