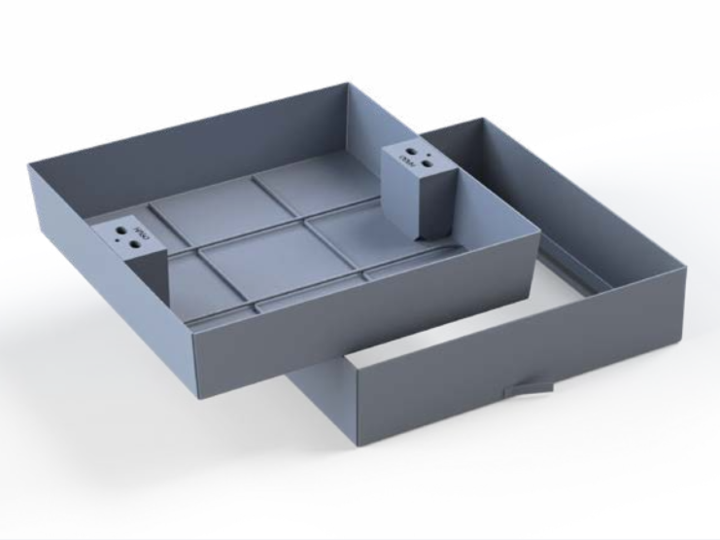

BVXH steel / BVEXH stainless steel extra deep recess cover – odor tight and largely waterproof
Load capacity:
125 kN test load EN 124 at min. 5 cm concrete grade C35/45 (EN 206)
Material:
Frame and cover made of
BVXH:
Frame and cover made of sheet steel. Hotdip galvanized. Good chemical resistant special gasket.
BVEXH:
Frame and cover made of stainless steel grade 304 or on request grade 316. After welding full bath pickling. Good chemical resistant special sealing
Features:
Extra deep recess design. Ideal access cover for the building forecourt area. In the 150 mm deep recess cover paving stones up to 100 mm in height can be fit. Thanks to EPDM sealing the cover is odor-proof and largely watertight.
Lifting plates:
The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery ) and a thread for the HAGOlifter (lifting device).
Application:
Access cover built for use at building forecourt for up to 100 mm high paving stones, concrete blocks etc.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & Dimensions
| Type | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight empty approx. | S/O* |
|---|---|---|---|---|
| Galvanised steel | c x d | A x B | ||
| BVXH 66 | 60x60 | 75,2 x 75,2 | 48 kg | O |
| BVXH 88 | 80x80 | 95,2 x 95,2 | 65 kg | O |
| BVXH 110 | 100x100 | 115,2 x 115,2 | 84 kg | O |
| Steinless steel | ||||
| BVEXH 66 | 60x60 | 75,2 x 75,2 | 48 kg | O |
| BVEXH 88 | 80x80 | 95,2 x 95,2 | 65 kg | O |
| BVEXH 110 | 100x100 | 115,2 x 115,2 | 84 kg | O |
Special sizes possible
Special heights (recess depths) possible
*S = available from stock
*O = to order
Section drawing
- 1 / Frame
- 2 / Cover
- 3 / Seal
- 4 / Reinforcement
- 5 / Ancher
- 6 / Lifting plate
Specification clause
HAGODECK Type BVXH (galvanised steel)
Access cover, type HAGODECK BVXH, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish, extra deep pan with 15 cm deep recess, hot-dip galvanised steel, sealed, 125 kN (EN 124).
The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery) and a thread for the HAGOlifter (lifting device).
Installation shall be according to the manufacturer’s instructions. Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
HAGODECK Type BVEXH (stainless steel)
Access cover, type HAGODECK BVEXH, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish, extra deep pan with 15 cm deep recess, stainless steel, passivated, sealed, 125 kN (EN 124).
The lift-out plates are fitted with 2 slot holes (for common lifting tools, not included in delivery) and a thread for the HAGOlifter (lifting device).
Installation shall be according to the manufacturer’s instructions. Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
