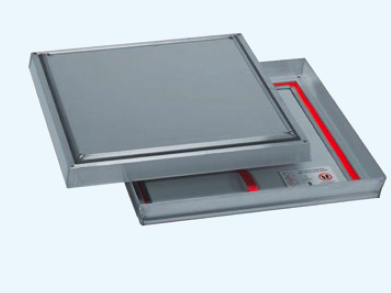

BVA-F90 aluminium sealed, fire-resistant access cover
Load capacity:
125 kN test load EN 1244.
Material:
Frame and cover sections in extruded aluminium. Stainless steel screws. Fire protection panel on stainless steel Z-brackets, EPDM seal and fire-resistant seal.
Features:
Sealed access cover in high-quality finish. Very attractive surface, the visible edges are particularly attractive. Therefore these covers are particularly suitable where a look of elegance is required. Very easy-to-open design. Robust corner joints guarantee a very high degree of rigidity and make it easier to lay tiles and ceramic finishes. EPDM seal. The cover is reinforced with a clamped steel mesh reinforcement.
Fire test certificate:
The Austrian test certificate issued by the Institute for Fire Protection Technology and Safety Research (IBS) confirms that HAGODECK Type BVA-F90 alu resists a fire for 120 minutes and thus significantly contributes to safety in the event of a fire.
In accordance with EN 13501-2, Type BVA-F90 is classified in fire resistance class REI 120 (a↔b).
The Lift-Off opening system:

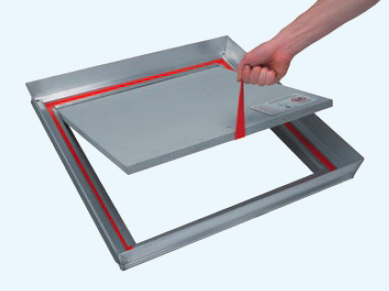

Every HAGODECK Type BVA-F90 alu cover comes with a set of lifting keys and precise installation instructions. After lifting out the cover, the fire protection panel can be removed using its grab handle. The shaft is then accessible without restriction. The HAGO advantage: jammed covers are released by simply turning the Golden Key.
Applications:
Access covers inside buildings that are required to be fire-resistant.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & Dimensions
| Typ | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight empty approx. | S/O* |
|---|---|---|---|---|
| c x d | A x B | |||
| BVA-F90 22 | 20 x 20 | 32 x 32 | 4 kg | L |
| BVA-F90 33 | 30 x 30 | 42 x 42 | 7 kg | L |
| BVA-F90 44 | 40 x 40 | 52 x 52 | 11 kg | L |
| BVA-F90 45 | 45 x 45 | 57 x 57 | 12 kg | L |
| BVA-F90 55 | 50 x 50 | 62 x 62 | 14 kg | L |
| BVA-F90 64 | 60 x 40 | 72 x 52 | 14 kg | L |
| BVA-F90 66 | 60 x 60 | 72 x 72 | 17 kg | L |
| BVA-F90 635 | 63,5 x 63,5 | 75,5 x 75,5 | 18 kg | L |
| BVA-F90 77 | 70 x 70 | 82 x 82 | 21 kg | L |
| BVA-F90 86 | 80 x 60 | 92 x 72 | 21 kg | L |
| BVA-F90 88 | 80 x 80 | 92 x 92 | 26 kg | L |
| BVA-F90 106 | 100 x 60 | 112 x 72 | 26 kg | L |
| BVA-F90 108 | 100 x 80 | 112 x 92 | 34 kg | L |
| BVA-F90 110 | 100 x 100 | 112 x 112 | 39 kg | L |
Cover depth ≈ 6.6 cm
Installation depth: ≈ 7.6 cm
Special sizes possible
*S = article available from stock
*O = article is manufactured on request
Section drawing
- 1 / Frame
- 2 / Cover
- 3 / Seal
- 4 / Reinforcement
- 5 / Allen screw (stainless steel)
- 6 / Die-cast corner (alu)
- 7 / Plastic cap
- 8 / Base plate (aluminium)
- 9 / Injection-moulded part (plastic)
- 10 / Square nut (stainless steel)
- 11 / Fire protection strip
- 12 / Fire protection plate in Z-bracket
- 13 / Lifting handle for fire protection plate
- 14 / Stainless steel Z-bracket for fire protection plate
Specification clause
HAGODECK Type BVA-F90 (aluminium)
Access cover with Golden Key Lift Off opening tool, Type HAGODECK BVA-F90, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish. Fire-resistant version classified in accordance with EN 13502-2: REI 120 (with test certificate), Aluminium, sealed, 125 kN (EN 124), unobtrusive corner joints (max. visible surface 30 x 30 mm). Stainless steel screws. Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
