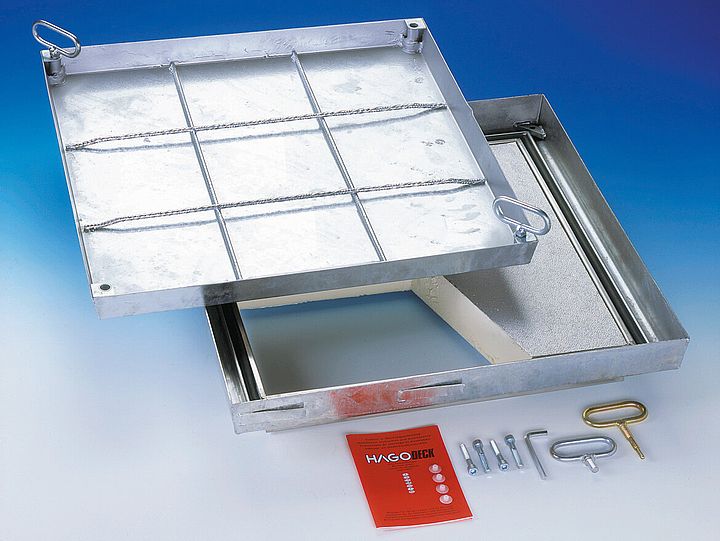

BV-Thermo steel galvanised BVE-Thermo stainless steel Sealed covers
Load capacity:
125 kN test load EN 124.
Material:
Frame and cover in 2 mm cold-formed precision steel profiles. Hot-dip galvanised. Insulated version, consisting of: Z-brackets, EPDM seal, polyurethane rigid foam insulation panel coated with aluminium on both sides. Thermal resistance = 3.6 m2 K/W Thermal coefficient 0.276 W/m2 K (=RC Warde)
Features:
Sealed cover with inlaid insulation panel. Tapered design allows easy opening. Virtually invisible when installed. Robust steel mesh reinforcement.
The Lift-Off opening system:
Every HAGODECK Type BV thermo cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key.
Applications:
For areas inside buildings where a cover with insulation properties is required.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & dimensions
| Type | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight empty approx. | S/O* |
|---|---|---|---|---|
| c x d | A x B | |||
| BV-Thermo 55 | 50 x 50 | 63,5 x 63,5 | 19 kg | S |
| BV-Thermo 66 | 60 x 60 | 73,5 x 73,5 | 23 kg | S |
| BV-Thermo 86 | 80 x 60 | 93,5 x 73,5 | 29 kg | S |
| BV-Thermo 88 | 80 x 80 | 93,5 x 93,5 | 33 kg | S |
| BV-Thermo 106 | 100 x 60 | 113,5 x 73,5 | 33 kg | S |
| BV-Thermo 110 | 100 x 100 | 113,5 x 113,5 | 45 kg | S |
Cover depth ≈ 5.0 cm
Installation height ≈ 7.5 cm
Insulation panel penetrates ≈ 6.3 cm into the shaft.
Special sizes possible
*S = available from stock
*O = to order
Section drawing
- 1 / Frame
- 2 / Cover
- 3 / Seal
- 4 / Reinforcement
- 5 / Allen screw
- 6 / Plastic cap
- 7 / Anchor
- 8 / Insulation plate in Z-bracket
- 9 / Lifting handle for insulation plate
- 10 / Alu Z-bracket
Specification clause
HAGODECK Type BV thermo (galvanised steel)
Access cover with Golden Key Lift Off opening tool, Type HAGODECK BV thermo, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish. Insulated version with insulation panel [min. 0.3 W/m2 K (=RC Warde)], hot-dip galvanised steel, sealed, 125 kN (EN 124), unobtrusive corner joints (max. visible surface 35 x 35 mm). Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
