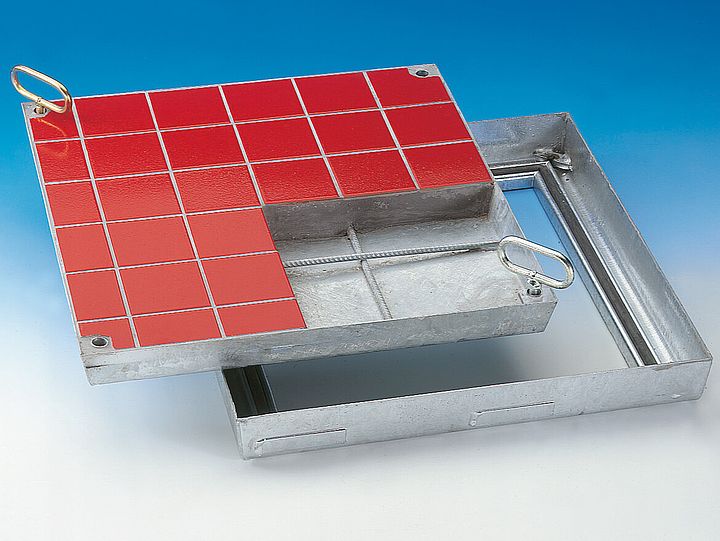

BV steel galvanised sealed cover
Load capacity:
125 kN test load EN 124
Material:
Frame and cover in 2 mm cold-formed precision steel profiles. Hot-dip galvanised.
Features:
Accurately manufactured sealed access covers. Tapered design allows easy opening. Virtually invisible when installed. EPDM seal. Robust steel mesh reinforcement.
The Lift-Off opening system:
Every HAGODECK Type BV steel cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key.
Applications:

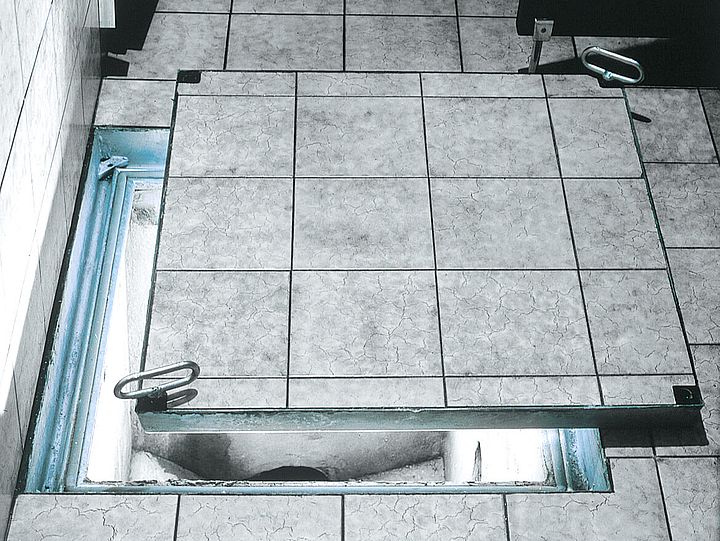

Inside buildings or their surroundings, where sealed covers are required.
Installation:
Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
Types & dimensions
| Type | Clear dimensions of shaft (≈ cm) | Outside dimensions (≈ cm) | Weight empty approx. | S/O* |
|---|---|---|---|---|
| c x d | A x B | |||
| BV 33 | 30 x 30 | 43,5 x 43,5 | 10 kg | S |
| BV 44 | 40 x 40 | 53,5 x 53,5 | 13 kg | S |
| BV 45 | 45 x 45 | 58,5 x 58,5 | 16 kg | S |
| BV 55 | 50 x 50 | 63,5 x 63,5 | 17 kg | S |
| BV 64 | 60 x 40 | 73,5 x 53,5 | 17 kg | S |
| BV 66 | 60 x 60 | 73,5 x 73,5 | 21 kg | S |
| BV 635 | 63,5 x 63,5 | 77,0 x 77,0 | 22 kg | S |
| BV 86 | 80 x 60 | 93,5 x 73,5 | 27 kg | S |
| BV 88 | 80 x 80 | 93,5 x 93,5 | 31 kg | S |
| BV 106 | 100 x 60 | 113,5 x 73,5 | 31 kg | S |
| BV 108 | 100 x 80 | 113,5 x 93,5 | 37 kg | S |
| BV 110 | 100 x 100 | 113,5 x 113,5 | 42 kg |
Cover depth ≈ 5.0 cm
Installation height ≈ 7.5 cm
Special sizes possible
*S = available from stock
*O = to order
section drawing
- 1 / Frame
- 2 / Cover
- 3 / Seal
- 4 / Reinforcement
- 5 / Allen screw
- 6 / Plastic cap
- 7 / Anchor
Specification clause
HAGODECK Type BV (galvanised steel)
Access cover with Golden Key Lift Off opening tool, Type HAGODECK BV, clear opening ....... x ....... cm, suitable for infilling with the architect’s choice of floor finish. Hot-dip galvanised steel, sealed, 125 kN (EN 124), unobtrusive corner joints (max. visible surface 35 x 35 mm). Installation shall be according to the manufacturer’s instructions.
Manufacturer: HAGO A-4600 Wels, Austria www.hago.at
