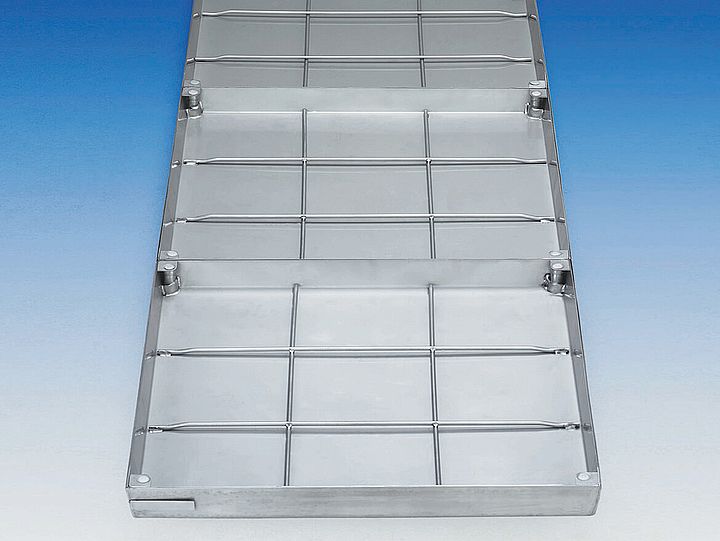

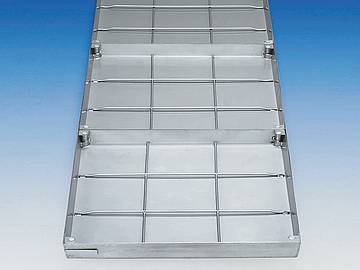

BV-RA steel galvanised BVE-RA stainless steel Largely sealed covers

Load capacity:

125 kN test load EN 124 when completely filled with concrete C35/45 (EN 206-1).


Material:

In Type BV-RA frame, cover and cross-beam in 2 mm cold-formed precision steel profiles. Hot-dip galvanised. In Type BVE-RA frame, cover and cross-beam made of grade 304 stainless steel (on request also available in grade 316 stainless steel). EPDM seal.

Features:

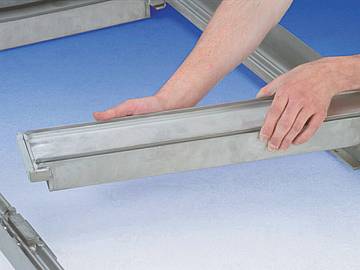

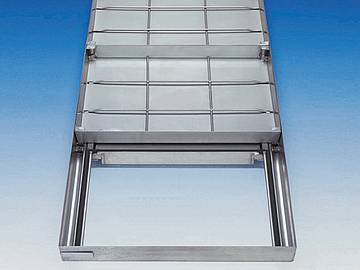

Smell proof, largely water-tight multi-part cover (Not guaranteed to be completely water-tight). The cross-beams can be removed without tools, to give clear access to the entire duct. This gives clear access to the duct when retrofitting pipes or during repair work.


Versions:

In addition to the standard cover height (approx.50 mm), a deep cover version (approx. 100 mm) is available. Ideal for infill with paviors.


The Lift-Off opening system:

Every HAGODECK Type BV(E)-RA cover comes with a set of lifting keys and precise installation instructions. The HAGO advantage: jammed covers are released by simply turning the Golden Key.

Applications:

Ideal cover for supply and disposal ducts in the industrial and workshop sector, e.g. for energy, water and compressed air supply.

Installation:

Installation must be carried out according to our instructions. With water-tight models, care must be taken to seal the outer frame into the surrounding flooring.
