Alugrip 24|17|10

‹ to overview

PDF Catalog

Materials:

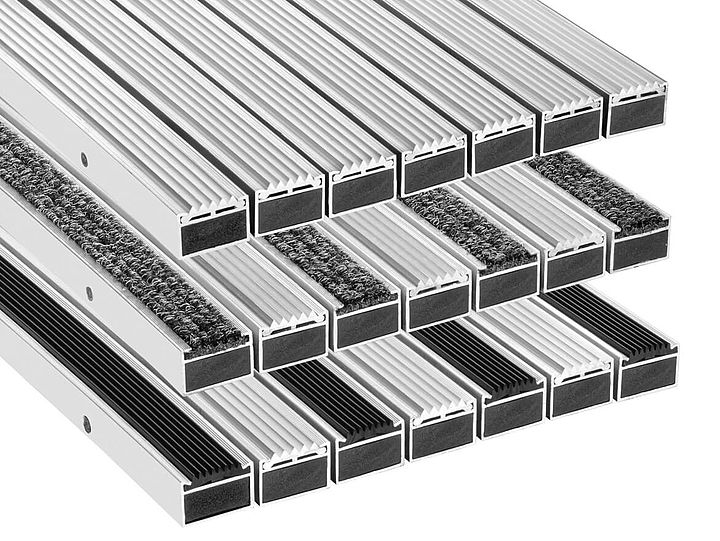

Aluminium profile with grooved aluminium stripes.

Versions:

5 mm or 10 mm profile spacing
Combined with Combiclean strip (coarse-fibre ribs)
Combined with Combistrip strip (rubber strips)
Reinforced version available with hard plastic core upon request

Features:

Weatherproof. Ideally suited as a coarse cleaner. The mat must lie flush with the surface. Sound dampened and non-slip from rubber strips on the underside.

Reaction to fire:

Classified according to EN 11925-2 and EN 9239-1. Cfl-s1 (with Combiclean strip) Cfl-s1 (with Combistrip strip)

Dimensions:

Mat height: 10 mm, 17 mm or 24 mm Profile spacing: Approx. 5 mm or approx. 10 mm Profile length: Max. 2.00 m – longer mats are made in two or more parts.
Large mats must also be made in two or more parts in their walking depth as well.

Shapes:

Any mat shape is possible!

Weight:

Approx. 18 kg/m² for 24 mm height
Approx. 16 kg/m² for 17 mm height
Approx. 14 kg/m² for 10 mm height

Cleaning:

Simply vacuum the surface and the underlying surface (ideally daily). For extreme dirt, hose off with pressurised water (e. g. high pressure water jet cleaner).

Available Colors

Coarse-fibre ribs

12 brown

04 blue

13 green

05 light grey

01 anthracite

Rubber strips

05 grey

17 black

Types

Part. no.	Product description	Approx. mat height	Compatible angle frame inside height
11 700	Hagomat Alugrip 24 5 mm profile spacing	24 mm	23 mm
11 725	Hagomat Alugrip 17 5 mm profile spacing	17 mm	17 mm
11 757	Hagomat Alugrip 10 5 mm profile spacing	10 mm	10 mm
11 750	Hagomat Alugrip 24 with Combiclean strip	24 mm	23 mm
11 753	Hagomat Alugrip 17 with Combiclean strip	17 mm	17 mm
11 758	Hagomat Alugrip 10 with Combiclean strip	10 mm	10 mm
11 760	Hagomat Alugrip 24 with Combistrip strip	24 mm	23 mm
11 763	Hagomat Alugrip 17 with Combistrip strip	17 mm	17 mm
11 767	Hagomat Alugrip 10 with Combistrip strip	10 mm	10 mm

Also available in the reinforced version for the 17 mm and 24 mm heights.

Tender specification

HAGOMAT Alugrip. . . . , Part no. . . . . . . . . . Aluminium profile with grooved aluminium strips. Optionally with Combistrip strip: Colour of the rubber strips. . . . . . Optionally with Combiclean strip: Colour of coarse-fibre ribs. . . . . . Made to measure without compensating end profiles. Reaction to fire: Cfl-s1 with Combistrip strip. Cfl-s1 with Combiclean strip. Deliver and install.
